Selecting Ceramics for Semiconductor Equipment: Purity, Thermal Management and Contamination Risk

Creatz3D Ceramics
Feb 12
3 min read

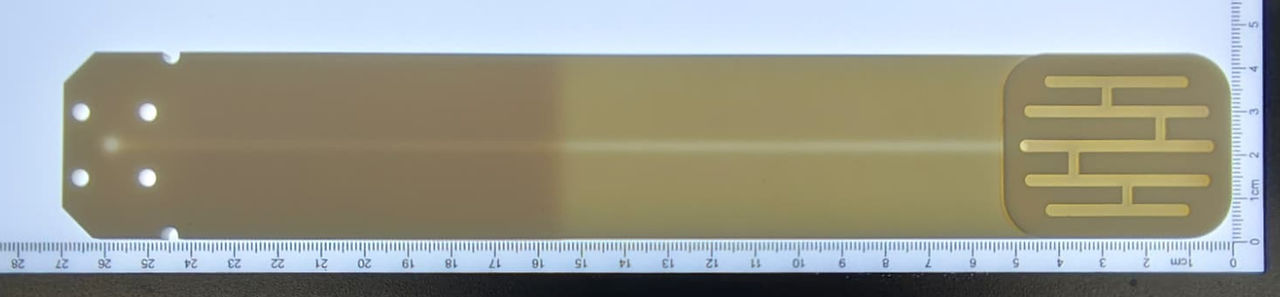

Semiconductor Ceramic End Effector with Vacuum Channel

In semiconductor equipment, ceramic selection is rarely driven by one property alone. The decision typically balances cleanliness/contamination risk⚠️, thermal management🌡️, mechanical robustness🛠️, and functional interface control📏 (fit, sealing, alignment). This guide provides a practical specification checklist using alumina, zirconia, aluminium nitride (AlN) and silicon nitride (Si₃N₄) as common candidates.

Why semiconductor equipment is different

Semiconductor equipment components tend to be sensitive to:

Particles and contamination (process yield risk)
Thermal gradients and heat flow (stability and repeatability)
Interface performance (fit, alignment, contact, sealing)
Repeatability and documentation (qualification and sustaining supply)

That means “material selection” and “specification strategy” must be treated together.

Step 1: Start with the function and risk profile

Before choosing a material, define the component category:

Typical ceramic functions in semiconductor equipment

Electrical insulation in harsh environments
Thermal management where heat flow and stability matter

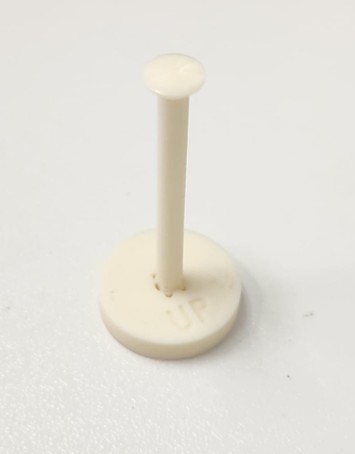

Fixtures/supports/handling components where wear and robustness matter
Interface parts where flatness, fit, and surface condition drive performance

Step 2: What to prioritise when shortlisting materials

Use the shortlist below as a practical starting point, then validate with cleanliness and interface requirements.

Alumina (Al₂O₃): baseline workhorse (often the starting point)

Often chosen when insulation and general robustness are needed.
Works well when requirements are clear and functional surfaces are defined.

What to specify early: CTQs, datums, and which surfaces require controlled finish.

Aluminium nitride (AlN): thermal management + insulation

Often shortlisted when thermal conductivity is critical without losing insulating behaviour.

What to specify early: thermal path, hot spots, interface conditions (mating parts), and thermal cycling.

Zirconia (ZrO₂): robustness where damage risk matters

Frequently considered where handling/assembly damage risk is high and robustness is important.

What to specify early: mechanical constraints, assembly process, and what “acceptable defect” means.

Silicon nitride (Si₃N₄): robustness under demanding thermal/mechanical conditions

Often considered where mechanical robustness and thermal cycling tolerance are key drivers.

What to specify early: temperature ramp rates, constraint points, and critical interfaces.

Step 3: Cleanliness and contamination risk are specification problems

In semiconductor equipment, contamination risk is typically controlled by:

Defining functional surfaces (contact/seal/wear)
Aligning expectations on surface condition (finish only where needed)
Establishing handling and packaging controls
Setting acceptance criteria (cosmetic vs functional defects)

If these are missing, you’ll see delays in qualification and disagreements in acceptance—regardless of material.

Step 4: Use a semiconductor-ready specification checklist

This checklist is designed to reduce RFQ cycles and accelerate feasibility review.

Semiconductor ceramic RFQ checklist (what to provide)

Operating context

Temperature range and cycling (ramp rates, dwell time)
Environmental constraints (humidity, chemicals, particulates) as applicable
Thermal management intent (where heat enters/leaves the part)

Functional and interface requirements

CTQ dimensions + tolerances (highlighted)
Datum scheme (how the part is referenced in assembly)
Functional surfaces (seal/wear/contact) and their finish needs
Fit/alignment interfaces and any stack-up sensitivities

Cleanliness and acceptance

Cleanliness/contamination requirement (how sensitive is the application?)
Packaging and handling requirements (edge protection, separation, labelling)
Defect acceptance criteria:
- Where cosmetic defects are acceptable
- Where defects are unacceptable (functional surfaces)

Verification

Inspection method expectation for CTQs
What documentation is required for acceptance (agree upfront)

Common pitfalls (and what to do instead) ⚠️

Pitfall: Treating all dimensions as equally critical.
Do instead: identify CTQs and reference features; keep non-CTQs flexible.
Pitfall: Finish requirements applied everywhere “just in case”.
Do instead: apply finishing to functional faces only; define why each finish is needed.

FAQ❓

Q1: What matters more in semiconductor equipment—material properties or cleanliness?

Both. Cleanliness and acceptance criteria often determine qualification speed, while material properties determine performance and reliability.

Q2: When should we consider AlN for semiconductor equipment parts?

When thermal management and stability are limiting performance and you need thermal conductivity together with electrical insulation.

Q3: How do we reduce particle/contamination risk when specifying ceramics?

Mark functional surfaces clearly, align on finish requirements where functional, and define handling/packaging controls and defect acceptance criteria upfront.

Q4: What’s the most common reason ceramic programmes stall during sourcing?

Missing inputs: CTQs, datums, inspection expectation, and unclear acceptance criteria (especially cosmetic vs functional defects).

Q5: What should supply chain request to de-risk repeatability?

A clear inspection plan aligned to CTQs, agreed acceptance criteria, and a staged build approach (prototype → pilot → production) when moving beyond prototyping.
